Water Pipes

  1. We at AKC Pipes strongly believe in maximum resource utilization, i.e we want you to use the right pipe at the right place and in turn save your money and the world’s scarce resources. In order to achieve this we provide a wider range of Non-ISI marked pipes for the same outer dimensions.

AKC PREEMIER POPULAR Pipes

AKC PREEMIER Popular pipes are manufactured keeping their outer dimensions to match IS4985 standard but we give you a different range by varing the weight of pipes. These pipes are provided with plain socket and are suitable for solvent cement jointing.

The standard colour available is light grey and nominal length of 6 metres.


Applications( Non pressure) :
Drainage, sewage and rainwater lines cable ducting, ventilation and slurry lines.

Pressure classes available are as follows:


INCH SIZE 4 Kgf/cm2 6 Kgf/cm2 10 Kgf/cm2 15 Kgf/cm2
1/2" 20 MM --- --- AVL ---
3/4" 25 MM --- --- AVL AVL
1" 32 MM --- --- AVL AVL
1 1/4" 40 MM --- AVL --- AVL
1 1/2" 50 MM --- AVL --- AVL
2" 63 MM AVL AVL --- ---
21/2" 75 MM AVL AVL --- ---
3" 90 MM AVL AVL --- ---
4" 110 MM AVL AVL --- ---

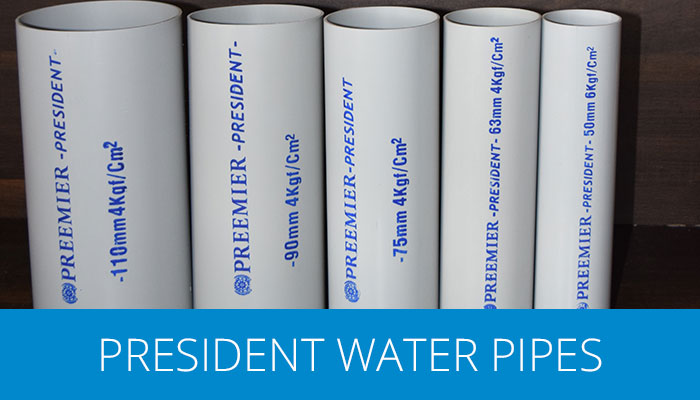

AKC PREEMIER PRESIDENT Pipes

AKC PREEMIER PRESIDENT pipes are available in 2.5kgf/cm2, 4kgf/cm2, 6kgf/cm2, 10kgf/cm2 and 15kgf/cm2 pressure classes and are manufactured in line with dimensions of IS4985 standards. These pipes are provided with plain socket and are suitable for solvent cement jointing.

The standard colour available is light grey and nominal length of 6 metres.

Applications:
Agriculture for water supply, drip irrigation and sprinkler lines.

Pressure classes available are as follows:


INCH SIZE 4 Kgf/cm2 6 Kgf/cm2 10 Kgf/cm2
1/2" 20 MM --- --- AVL
3/4" 25 MM --- --- AVL
1" 32 MM --- --- AVL
1 1/4" 40 MM --- AVL ---
1 1/2" 50 MM --- AVL ---
2" 63 MM AVL --- ---
2 1/2" 75 MM AVL --- ---
3" 90 MM AVL --- ---
4" 110 MM AVL --- ---
5" 140 MM AVL --- ---
6" 160 MM AVL --- ---
7" 180 MM AVL --- ---
8" 200MM AVL --- ---

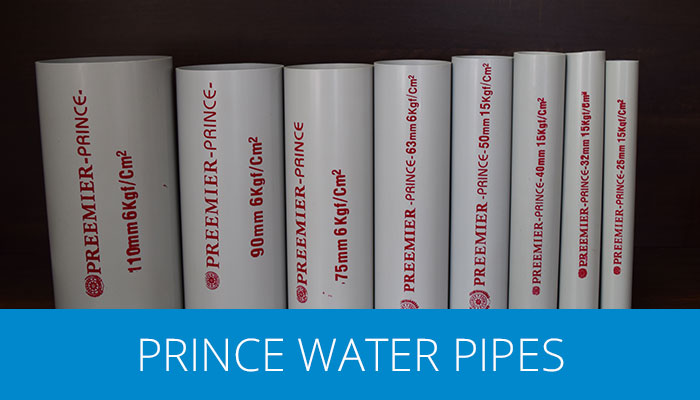

AKC PREEMIER PRINCE Pipes

AKC PREEMIER PRINCE pipes are available in 2.5kgf/cm2, 4kgf/cm2, 6kgf/cm2, 10kgf/cm2 and 15kgf/cm2 pressure classes and are manufactured in line with dimensions of IS4985 standards. These pipes are provided with plain socket and are suitable for solvent cement jointing.

The standard colour available is light grey and nominal length of 6 metres.

Applications:
Agriculture for water supply, drip irrigation and sprinkler lines.

Pressure classes available are as follows:


INCH SIZE 6 Kgf/cm2 15 Kgf/cm2
1/2" 20 MM --- AVL
3/4" 25 MM --- AVL
1" 32 MM --- AVL
1 1/4" 40 MM --- AVL
1 1/2" 50 MM --- AVL
2" 63 MM AVL ---
2 1/2" 75 MM AVL ---
3" 90 MM AVL ---
4" 110 MM AVL ---
5" 140 MM AVL ---
6" 160 MM AVL ---
7" 180 MM AVL ---
8" 200MM AVL ---

AKC AKSHARA PLATINUM UPVC Pipes

AKC AKSHARA range of UPVC pipes confirm to ASTM D 1785 Schedule 40 standards

Application:
Residential complexes, commercial buildings, public utilities, swimming pools, RO and DM water plants for cold water applications.

The standard colour available is half white and nominal length of 6 metres.

Salient Features

  • 1. UV-stabilized (No sunrays & weather effect).
  • 2. Suitable for supply of clean & hygienic drinking water.
  • 3. Economical/low operating & maintenance cost.
  • 4. Light weight facilitates easy & fast installation.
  • 5. No root penetration and 100% leak proof joints.
  • 6. Excellent corrosion chemical resistance.
  • 7. Mirror smooth inside surface ensures high flow rates.
  • 8. No algae formation.
  • 9. Non conductor of electricity & low thermal conductivity.


NOMINAL BORE OUTSIDE DIAMETER (d)
SCHEDULE 40
WALL THICKNESS (t) WORKING PRESSURE
(INCH) (mm) (mm) Mpa Psi
½ 21.34 +- 0.10 2.77 + 0.51 4.14 600
¾ 26.67 +- 0.10 2.87 + 0.51 3.31 480
1 33.40 +- 0.13 3.38 + 0.51 3.10 450
1 ½ 42.16 +- 0.13 3.56 + 0.51 2.55 370
1 ½ 48.26 +- 0.15 3.68 + 0.51 2.28 330
2 60.32 +- 0.15 3.91 + 0.51 1.93 280
